NOARK is a wholly-owned subsidiary of the largest electrical manufacturing groups in Asia, that has supplied products and EPC services to customers over 140 countries across different industrial sectors, including power utility, renewable energy, oil and gas, metallurgy and railway.

NOARK’s T & D portfolio is designed for electrical systems of medium, high and extra-high voltages up to 1000kV, covering a range of products including power transformers, dead tank circuit breakers, gas insulated switchgears, disconnectors, Medium Voltage cables and components.

NOARK Electric’s goal is to become a major supplier of Power T&D equipment to the North American market.

Mineral Oil-Filled Power Transformers

Ratings:

  • Voltage up to 1000kV
  • Three Phase Capacity: up to 1200MVA
  • Single Phase Capacity: up to 750MVA

Features:

  • Compact, lightweight, low noise
  • High short circuit and insulation value ratings
  • Fast deliveries and world class project management
  • Custom engineering available on request

Standards:

  • IEC 60076-1, IEC 60076-2, IEC 60076-3, IEC 60076-5
  • IEEE C57.12.00

Natural Ester Oil-Filled Power Transformers

Ratings:

  • Voltage up to 750kV
  • Three Phase Capacity: up to 1000MVA
  • Single Phase Capacity: up to 750MVA

Features:

  • Eco-friendly insulating oil
  • Compact, lightweight, low noise
  • High short circuit and insulation value ratings
  • Fast deliveries and world class project management

Standards:

  • IEC 60076-1, IEC 60076-2, IEC 60076-3, IEC 60076-5
  • IEEE C57.12.00

Pad Mount Transformers

Ratings:

  • Voltage range 6kV ~ 35kV
  • Capacity: 200 ~ 10000 kVA

Features:

  • Transformer housing, HV and LV operating room
  • HV side protected by dual fuses for safety
  • HV Load Breaker Switch: radial or loop feed connection
  • Small footprint: Main body and units are placed in the tank; high integration and improved space optimization

Standards:

IEEE C57.12.00, C57.12.28, C57.12.34, C57.12.90

Download the Datasheet

HV GIS Dead Tank Circuit Breakers

Ratings:

  • Voltage range 72.5kV ~ 252kV
  • Capacity: 3150A, 4000A

Features:

  • Compact Structure: Efficient connection method – standard bay spacing is 2m; minimum bay spacing is 1.8m
  • High Reliability: Electrical life is 22 cycles, mechanical life is ≥ 10000 cycles, with C2-E2-M2 tier model of linkage performance
  • Low Gas Leakage Rate: The butt flange surface is specially designed for double sealing structure; annual gas leakage rate is ≤0.1%
  • Low Partial Discharge: Under 80% power frequency withstand voltage, insulation is ≤2%, and the partial discharge value of the whole bay is ≤5%

Vacuum Circuit Breaker

Ratings:

  • Voltage up to 40.5kV
  • Capacity: 630A, 1250A, 1600A, 2000A, 2500A, 3150A, 4000A
  • BIL up to 185kV

Features:

  • Rated short-circuit breaking current: up to 31.5kA/4sec
  • Ambient air temperature: -25°C ~ +40°C
  • Altitudes up to 2000m

Fuse Cut-Out

Ratings:

  • Voltage from 12kV to 36kV
  • Capacity: 100A, 200A, 300A
  • BIL up to 200kV

Features:

  • High mechanical strength insulator (Composite or Porcelain)
  • Stainless steel spring, silver plated contacts
  • Hook for load break portable tool
  • Bronze fuse holder cutout components
  • Galvanized steel hardware and NEMA bracket

Standards:

  • IEC 60282-2
  • ANSI C37.42

Surge Arrester

Ratings:

  • 22 ~ 500kV (porcelain); 0.22 ~ 220kV (composite)
  • Metal oxide polymer housing (Gapless): 5kA/10kA/20kA series, 6kV – 36kV/6kV – 200kV/ 108kV – 200kV
  • Metal oxide porcelain housing (Gapless): 5kA/10kA/20kA series, 6kV – 36kV/6kV – 200kV/108kV – 444kV

Features:

  • Available in silicone polymer or porcelain housing
  • High BIL ratings
  • Altitudes up to 2000m
  • Ambient air temperature: -40°C ~ +40°C

Standards:

  • IEC 60099-4
  • ANSI C62.11

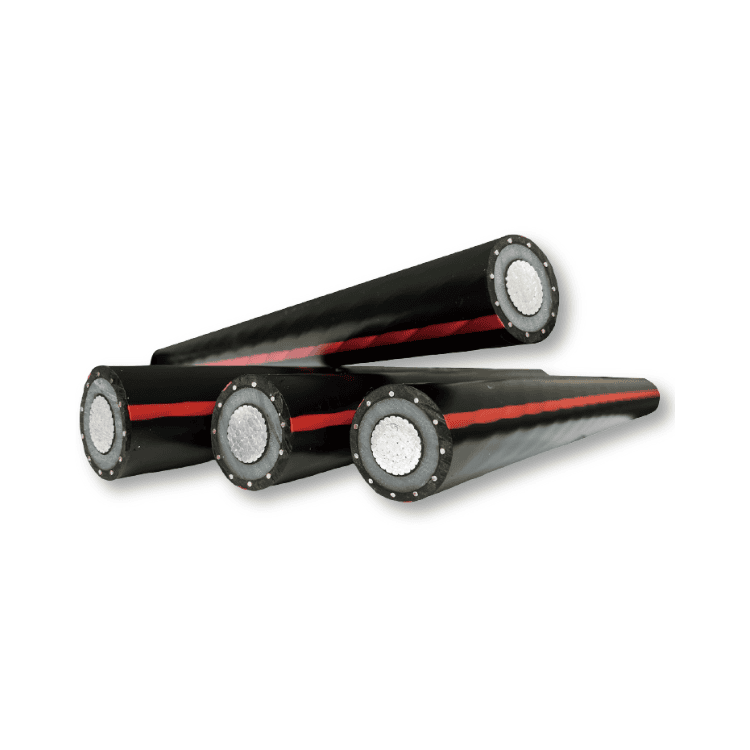

MV Power Cables

Ratings:

  • Voltage range: 5kV ~ 35kV
  • Cable type: MV-90, MV-105
  • Conductor size: 4/0 AWG ~ 1000 MCM (copper, aluminum)
  • Insulation material: XLPE, TR-XLPE
  • Jacket material: LLDPE, XLPE

Features:

  • Applied in directly or indirectly buried duct
  • Continuous operation from 90°C -105°C, wet or dry
  • Sunlight resistant
  • High performance insulation materials
  • Optional sealant for stranded conductors

Standards:

  • UL1072 (ANSI/IECA S-94-649)

Applications:

Industrial parks, Infrastructure including buildings, Transportation systems, EV charging systems

Download the Datasheet

High Voltage Insulators

Ratings:

  • Polymeric Long Rod type: 12kV to 500kV
  • Polymeric Pin Insulator type: up to 36kV
  • Polymeric Post Insulator type: up to 252kV

Features:

  • Mechanical load ratings up to 120kN
  • Ambient air temperature: -50°C to +50°C
  • High BIL ratings
  • Altitudes up to 3000m

Standards:

  • IEC 61446: 61109; 66217; 66231
  • ANSI C29.13

Commitment to Quality and Innovation

NOARK is dedicated to delivering high-quality, reliable products that meet the stringent standards of the power and energy industries. Through a commitment to continuous innovation, NOARK consistently enhances its product range, integrating advanced technologies to ensure safety, efficiency, and sustainability across all its offerings.

This focus enables NOARK to address the evolving needs of the North American market, making significant contributions to the stability and growth of critical infrastructure.
