K-Line Insulators Scorpion Neutral Conductor Clamp
May 13, 2026

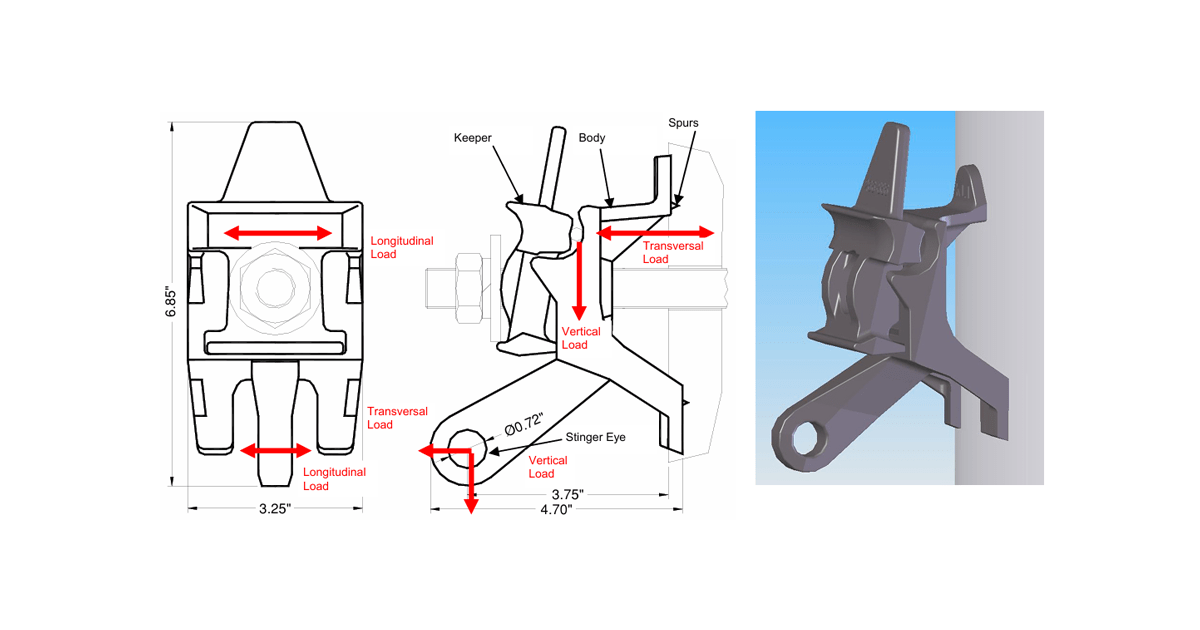

The “SCORPION” Neutral Conductor Clamp was developed specifically to address the expressed needs of Customers using a wide range of Neutral Conductor sizes, including large diameter conductors. The Galvanized Iron “SCORPION” was designed to accommodate Conductor sizes from #4 AWG to 715 kcmil. The Stinger Eye has a 0.72” diameter hole for temporary support of Conductor Stringing Rollers during line construction. The Stinger Eye also serves as a permanent attachment point for an Overhead Secondary Service Tap. The “SCORPION” is supplied with a Round Washer and Lock Washer, Spurs or no Spurs and installed with Customer supplied ¾” Bolt Hardware.
FEATURES:
- Material: Ductile Iron, Hot Dip Galvanized.
- Mounting Spurs for Wood Pole. No Spurs for Steel, Concrete, and Composite Poles.
- Conductor Range: 0.20” (#4 AWG) to 0.98” (715 kcmil AAC)
- Maximum Line Angle: 15º
Stinger Eye: For the attachment of a Stringing Roller during conductor installation or Secondary Service Tap.
Pole Mounting: The SCORPION is shipped with one ¾” flat round washer (max. 2” OD and min. 0.14” thick) and one ¾” lock washer. The bolt and nut are customer supplied at appropriate length. The installation torque for the ¾”-10 UNC bolt and nut is 130 ftlbs.
